Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Richcomm
  • Model Number: SitemateII
  • Weight: 4.5KG
  • Output Voltage: 220V
  • Type: Standby
  • Application: Security / Monitoring / Alarm
  • Usage: Server Room UPS/Environment System Monitoring
  • Encryted protocol: HTTPS, SNMPV3, IPV6, SSL,SSH
  • Power Input: 110~240V AC
  • Power Consumption: ≤ 5W
  • RS232 Port: 1 UPS
  • RS422/485 Add on: 20 Temperature & Humidity sensor(in series)
  • DIGIT IN: 16
  • DIGIT OUT: 5
  • ANALOG IN: 8

Packaging & Delivery

Packaging Details 1set/ carton
Delivery Time Shipped in 10 days after payment

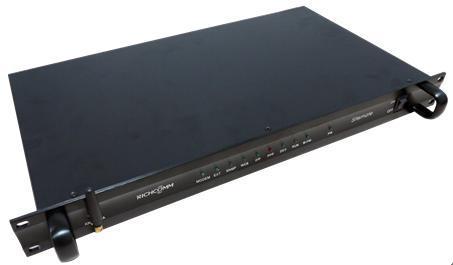

SitemateII

Integrated UPS/Environment Monitoring System for Small Data Center

Overview

Sitemate II is specially developed and researched for small data center, it is based on IP network technology, supports UPS monitoring and environment system detection(temperature, humidity, smoke, leakage, motion, door contact, gas, etc) in one host. SitemateII provides fast interface visiting and user settings via web browser, once an abnormal alarm happens, it will rapidly give alarm notifications with email, SMS, sound light, etc, for a real sense to guarantee 7*24 hours unattended data center .









Product Function

Support advantage encryption protocol such as HTTP, HTTPS, SSL, SSH,   SNMPV1\V2c\V3;

Support telnet, supper terminal, WEB page configuration;

Compatible with multi-brand and multi-type of UPS;

Support to add on 20 pieces of Temp&Humid sensors via RS422/RS485 ports;

With 16 digital input terminals, support to add on dry contact type detectors;

With 5 digital output terminals, support to add on relay output control;

Support 8 analog input signal detect;

Support SNMP trap,E-mail alarm notification;

Support IPV4/IPV6;

Built-in optional GSM Modem, support SMS query or alarm notification;

Support scheduled task(regular self-testing, switch on/off);

Support history events and data record storage;

Comprehensive event handle( including event record and notification);

Comprehensive managing function( data logs, SNTP and task schedule);

Support IPV4/IPV6;

Available to work with centralized software.

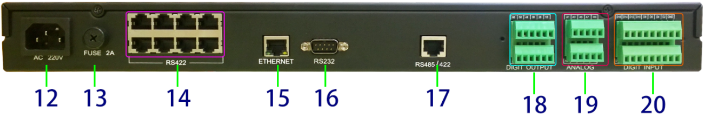

Ports Introduction



1-10: LED indicators

11: ON/OF switch







12: AC220V Power input

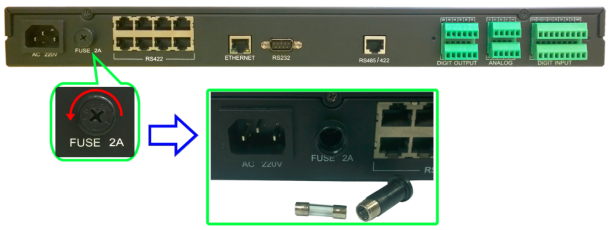

13: Fuse 2A

14/17: RS422/RS485

(connect Temp&Humid sensor/general air condition infrared component).

15: Ethernet port

16: RS232 serial port

(connect UPS)

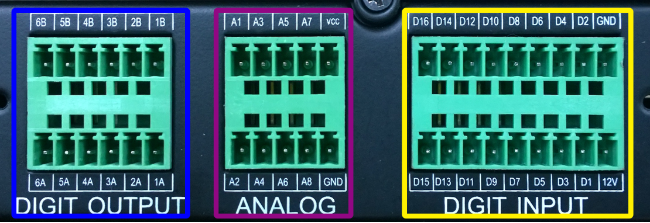

18: Digit output terminals

(connect relay output control)

19: Analog input terminals

20: Digit input terminals(connect dry contact type sensors)

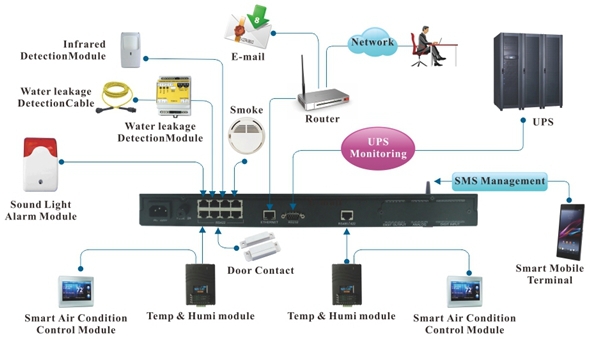

Network Diagram

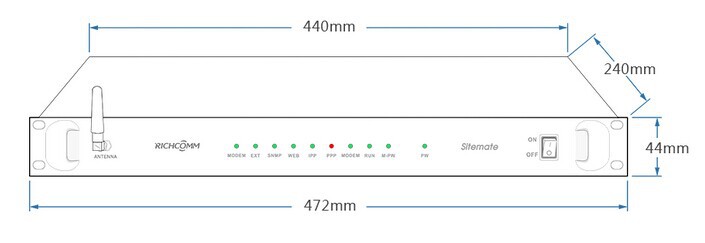

Dimension

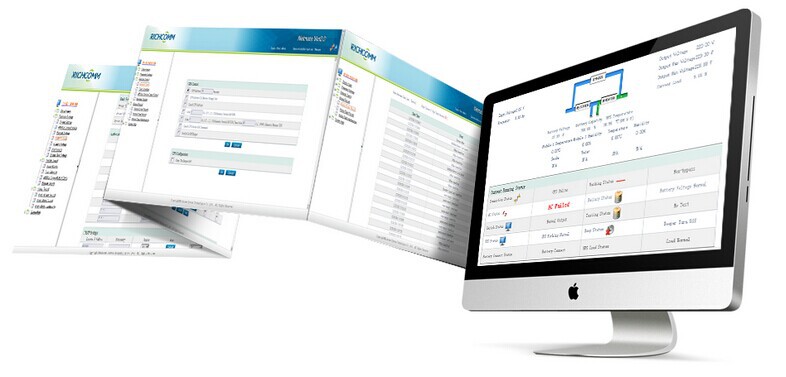

Monitoring Interface









Technical Parameters

CPU

32-bitARM926EJ-S core 300 MHz high-speed center processor(CPU)

RAM

64M byte SDRAM

Flash Rom

128M byte NAND Flash

Network Port

10/100Mbps High-speed Ethernet networks self-adaptive

Device Ports

1 RS232 asynchronous serial port;

1 RS422/485 add on port

16 Digit input terminals (0-5V TTL level);
8 Analog input terminals (0 ~ 5V linear level);

5 Digit output terminals (12VDC / 1A).

Browser Support

Internet Explore, Netscape or compatible browsers.

SNMP MIB

Support MIBII (RFC1213, RFC1315, RFC1316)RFC1628, PPC MIB

Network Protocol

TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, PPP,etc.

Encrypted protocol

HTTPS, SSL, SSH, SNMPV3, IPV6

LED Indicators

PW, M-PW, RUN, DEV, PPP, IPP, WEBS, SNMP,

EXT, MODEM, LAN 10/ 1 00M Link/Active

Input Power

220-240V

Frequency

50Hz

Power Consumption

  12W

Operating Environment

Temperature:0℃~70℃

Humidity:10~85%

Software Upgrade

Network upgrade

Other Configuration

Real time system clock synchronization

Languages

Chinese/English, support OEM other languages.

System Security

Provided filtering mechanism based on IP , and system operation, control and management of the user ID and password protection.

Safety Certificate

CE, FCC







Accessories



SN

Name

M.N

Function

Connection



1





Temp&Humid Sensor





RC77015

OLED Display



Detect data center indoor temperature and humidity parameters, every 20 M²need to install 1pc



RS422



RC77012

Digital Type

2



AirCon Infrared Component

RC77404

Remotely control air condition on-off,with auto reboot when AC recover

RS422







3



Smoke Sensor

RC77146

Detect indoor data center monitor status, every 20 M²-30M²need to install 1pc

DI

(terminals)





4





Infrared Sensor

RC77147

Detect data center intrusion, motion status

DI

(terminals)

5









Door contact

RC77424

Detect door or window on/off status



DI

(terminals)

6

Switching Value Transmitter

RC77754

Detect on-off status of air condition/ new fan

DI

(terminals)

7.

Sound Light Sensor

RC77412

Give sound light alarm notification

DO

(terminals)

8.

Dust Sensor

/

Detect dust capacity

Analog

     9.

Flammable Gas Sensor



/

Detect flammable gas

     Analog





   10.





Water Leakage Sensor



RC77106

(Non-Locating)

Detect data center water leakage status, work with water leakage cable, cable (5/10/15/20/30meter)optional, support length custom

DI

(terminals))
