DP520 SNMP Card for Line Interactive UPS & Standby UPS & UPS monitoring

FOB Reference Price:Get Latest Price
100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Richcomm
Model Number:
NetmateLite Mini1
Phase:
Single Phase
Output Voltage:
4.5V
Application:
Security / Monitoring / Alarm
Usage:
Uninterrupted Power Supply UPS Monitoring
DC input:
4.5V
Installation Type:
Internal Mini Card
UPS Connection:
4 Pin Terminals
SNMP Supported:
SNMP V1
Firmware Upgrade:
Network
Indicators:
PW, S1, S2, S3
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 pc/box
Port
Guangzhou
Lead Time :
Within 30 Work Days










NetmateLite Mini1(Internal) Overview:



NetmateLite mini1(Internal) belongs to the first Generation Web-based UPS( uninterruptible power supply )SNMP cards(NetmateLite series) that Richcomm company had launched in 2003, this mini internal model support basic single-phase UPS monitoring with 500 history events,  being of friendly user interface and simple operation, can satisfy your basic UPS monitoring demands.









Function



Support SNMP V1.1 version;

Provide user authorization management;

Built-in WEB server to achieve HTTP access;

With 4 indicator lamps to check various working status;

Support 500 history events and data storage;

Clock function;

Support SNMP Trap alarm, e-mail alarm;

Support network/serial port upgrade;

l Work with IP Power SE/IP Power 2012 for central monitoring and unify management.









Advantage



Competitive price;

Friendly web interface and simple operation & maintenance;

Flexibility (can be customized to different language version);

Support standalone and network monitoring;

Support central monitoring and unify management (match with IP Power SE/IP Power 2012);

With clock function and 500 history events.

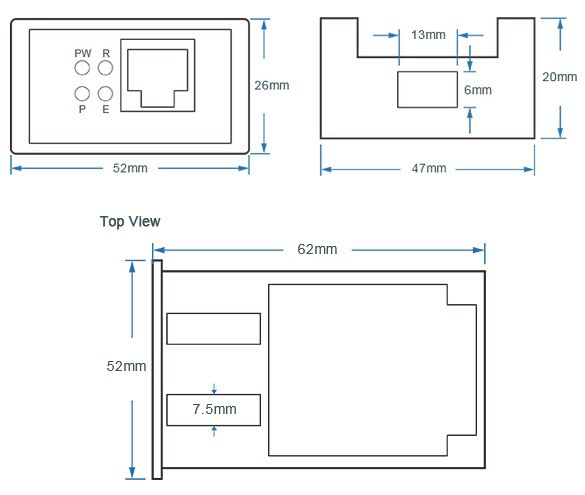

Dimension



mini1 size.jpg











Network Diagram








Technical Parameters

CPU

Low power and high performance, high ARM7TDMI-S 72MHz CPU

RAM

96KB SDRAM

Flash

512KB Flash

Network Port

10/100Mbps high-speed Ethernet self-adaptive

Serial Port

Golden finger

Browser Support

Support Internet Explorer, Goole Chrome, Netscape or other compatible browser

SNMP MIB

Support MIB-II(RFC1213, RFC1315, RFC1316, RFC1628), PPCMIB

Network

TCP/IP,UDP,SNMP

Input Power(DC)

4.5V-12V

LED Indicator

Power, Status, LAN 10/100M Link/Active

Power Consumption

≤0.84W

Working Environment

Temperature:0℃~70℃

Relative humidity:≤95%

Firmate Upgrade

Network upgrade

System Security

Provide IP based filtering mechanism, system operation, user ID control & management and password protection.

Safety Certificate

CE, FCC, ISO9001, ISO14001





Typical Application

Web-based UPS( uninterruptible power supply, power backup system )monitoring
