Computer UPS SNMP Card Online UPS Monitoring Line-interactive UPS Monitor: Netmate II mini(External)

FOB Reference Price:Get Latest Price
100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Richcomm
Weight:
490g
Application:
Security / Monitoring / Alarm
UPS Monitoring:
Single/Three phase UPS
RS485/422 Extension:
Temperture, Humidity Detection
Secondary Extension:
Dry Contact Inputs Detection
Compatibility:
Multi brand Multi Model Compatible
SNMP Support:
SNMP V1, V2
DC Input:
8~15V
Installation Type:
External(need work with power adapter)
UPS Connection:
RS232 Port
Indicators:
P, R, E
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 Piece/White Box
Grid Packng
Port
Guangzhou
Lead Time :
Within 30 Days

 5

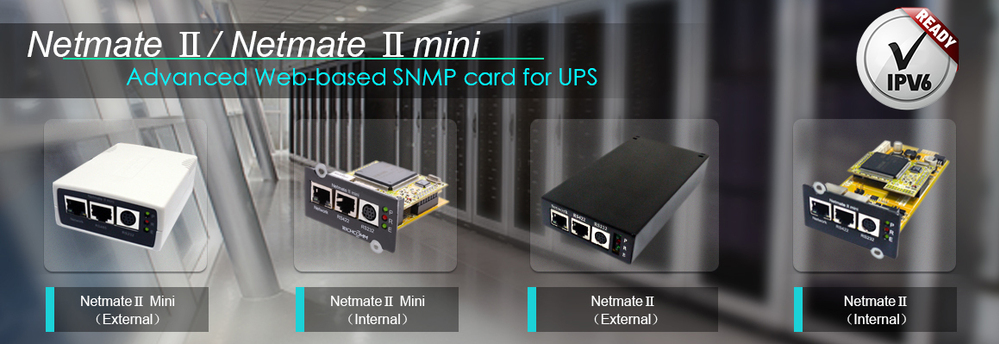

  Netmate II mini(External)







Overview

Netmate II mini(Internal) belong to advanced Generation II web-based UPS SNMP card,  designed with a more powerful CPU of high security,  it support multi brand and multi model of single/three phase UPS monitoring, simultaneously can do more environmental  extension, greatly satisty user high-level UPS system monitoring demands.







Product Function

• Support SNMP V2 protocol, RFC1628 MIB, XPPC MIB;

• Built-in WEB server to achieve HTTP access;

• Multi brand multi model compatible for single/three phase UPS ;

• Support history events and data storage;

• Support to extend 2 Temp & Humid sensors and 8 commom air conditioning infrared control;

• Support secondary extension for dry contact inputs;

• Support E-mail/SNMP trap alarm notifications;

• Support multi-user authorization management;

• Support DHCP;

• Support scheduled task;

• Support TELNET, WEB page configurations;

• Support network upgrade;

• With SNTP synchronous clock;

• Work with IP Power SE/IP Power 2012 for central monitoring and unify management.






Advantage

 Support web-based monitoring for single/ three phase UPS;

• Monitor basic information like current, voltage, bypass, AC power status, etc;

• Multi brand multi model compatible for single or three phase UPS like APC, EMERSON, EATON, Rellos

KELONG, KSTART, East, Powerware, Huawei, Ga, Socomec, etc;

• Memory function;

• Powerful environmental extension function;

• Built-in system clock can realize memory function, including:

•   Task scheduler(timing self-test, open, shutdown);

•   History event and history data record;

• Support to extend environmental parameters;

•   Temp & humidity sensor;

•   Digital inputs including smoke, water leakage, door/window contact, etc.







Dimension












 Technical Parameter

CPU

32-bit ARM RISC-based 50 MHz CPU

RAM

16M byte SDRAM

Flash ROM

4M byte Flash

Network Port

10/100Mbps high-speed Ethernet self-adaptive

Serial Port

RS232 port

1 RS422/485 port

Browser Support

Internet Explorer, Netscape or other compatible browser

SNMP MIB

MIB-II(RFC1213, RFC1315, RFC1316), PPC MIBRFC1628 MIB

Network Protocol

TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP,

ICMP, PPP, etc.

LED Indicator

Power, Status, Ready, LAN 10/100M Link/Active

Input Power (DC)

8 ~ 15V

Power Consumption

≤5W

Running Environment

Temperature: 0°C ~ 70°C

Humidity: 10 ~ 85%

Other Configuration

Real-time system clock

Language Supported

Chinese/English, also support OEM to other languages

Firmate Update

Network

System Security

Provide IP based filtering mechanism, system operation, user ID control &

management and password protection.

Safety Certificate

CE, FCC, ISO9001, ISO14001







Monitoring Interface








Typical Application

UPS monitoring, Environmental monitoring,  Temperature & Humidity monitoring, Data center monitoring, etc, Dry contact inputs monitoring, etc

Computer UPS, home UPS, industrial UPS, are all suitable.
