Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Richcomm
  • Model Number: NetmateIII EXT
  • Phase: Single phase and Three phase
  • Protection: Other
  • Weight: 1kg
  • Output Voltage: 12V
  • Type: Standby
  • Application: Security / Monitoring / Alarm
  • Usage1: UPS Monitoring
  • Usage2: Environmental parameter detect
  • Feature: Modular and flexiable

Packaging & Delivery

Packaging Details: 1 Set/Box
Delivery Detail: Shipped in 30 days after payment



 Overview

Netmatelll EXT is a mini-type monitor for UPS & environment parameters system, it supports multi-brand and multi-type of UPS, at a same time can easily add on environment parameters detect like temperature, humidity, smoke, leakage, motion, door contact, etc, when abnormal situation happens, it will rapidly give email, sound light alarm notification.







Product Function

Support advantage encryption protocol such as HTTP, HTTPS, SSL, SSH,   SNMPV1\V2c\V3;

Support telnet, supper terminal, WEB page configuration;

Compatible with multi-brand and multi-type of UPS;

Support to add on 2 pieces of Temp&Humid sensors via RS422/RS485 ports;

With 4 digital input terminals, support to add on dry contact type detectors;

With 2 digital output terminals, support to add on relay output control;

Support SNMP trap,E-mail alarm notification;

Support IPV4/IPV6

Support scheduled task(regular self-testing, switch on/off);

Support history events and data record storage;

Comprehensive event handle( including event record and notification);

Comprehensive managing function( data logs, SNTP and task schedule);

Support IPV4/IPV6;

Available to work with centralized software.

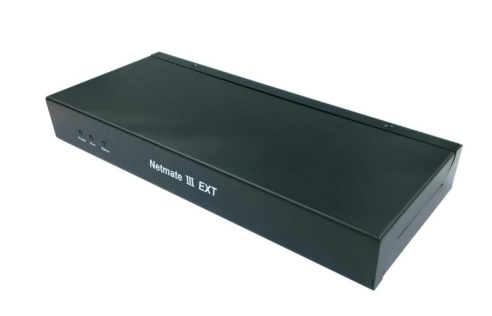

Appearance

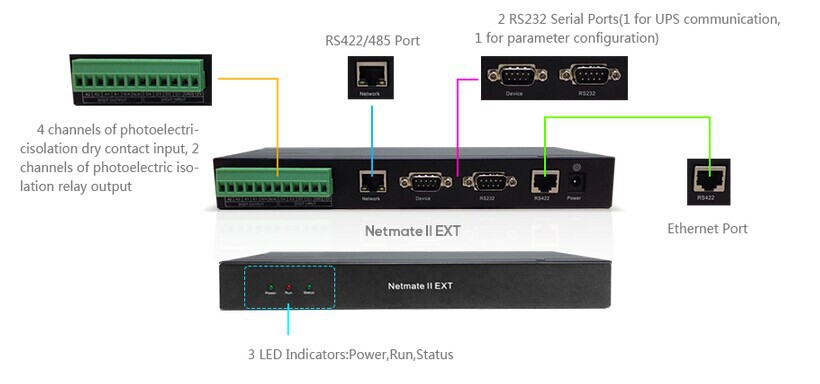

 Ports Introduction

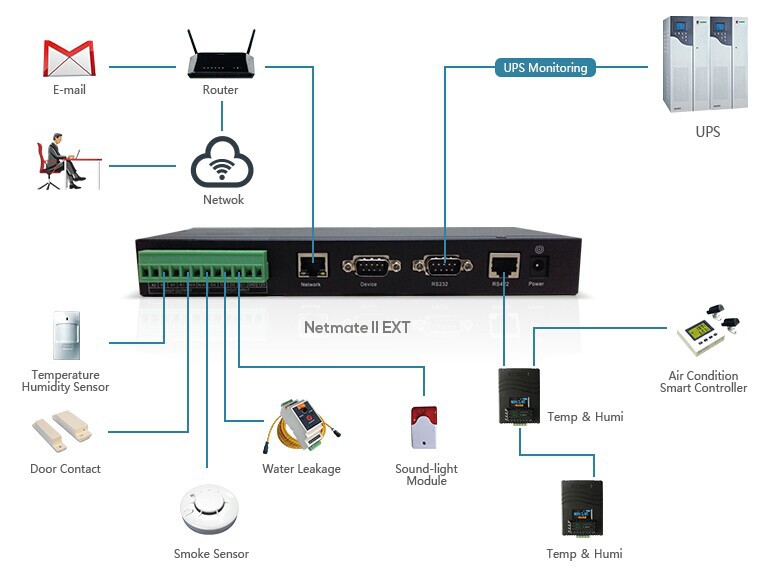

Network Diagram

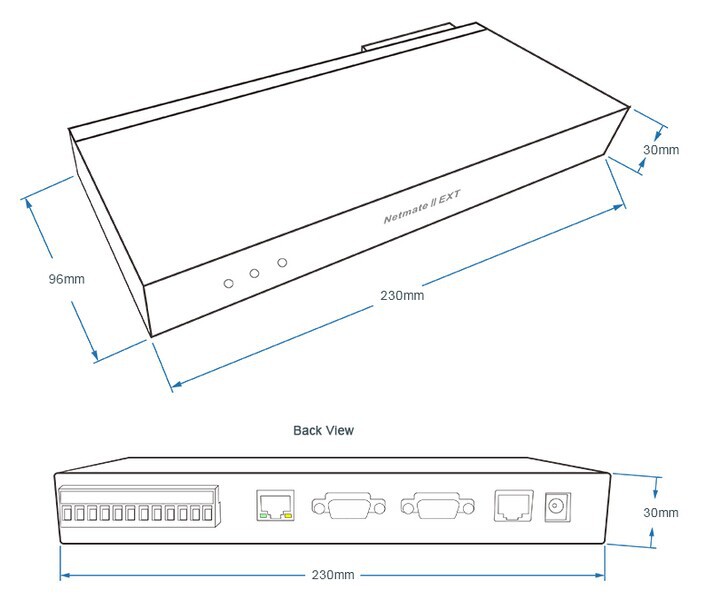

Dimension

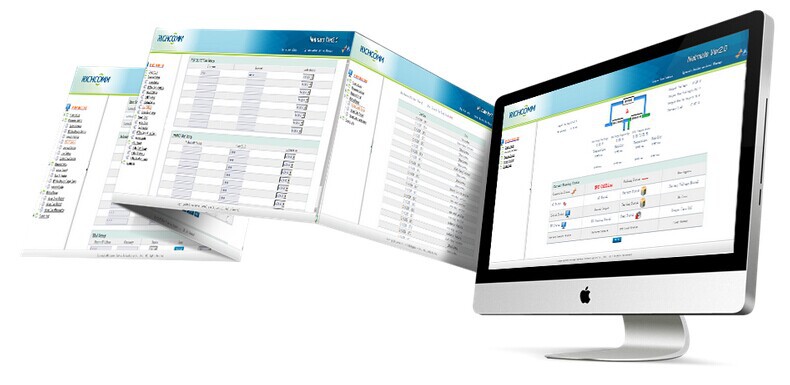

Monitoring Interface











Technical Parameters



CPU

32-bit ARM RISC-based 50 MHz (CPU)

RAM

16M byte SDRAM

Flash ROM

4M byte Flash

Ethernet

10/100Mbps High-speed Ethernet networks self-adaptive

Serial Ports

2 RS232 ports;

Left RS232 port(connect UPS);

Right RS232 port(configure parameters);

1 RS422 port(Temp& Humid/General air condition infrared component)

DI/DO Terminals

4 Digit input terminals (0-5V TTL level);

2 Digit output terminals (12VDC / 1A)

Browser Supported

Internet Explorer,Netscape, Google Chrome

SNMP MIB

Support MIBII (RFC1213, RFC1315, RFC1316)RFC1628, PPC MIB

Network Protocol

TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, PPP, etc

Encrypted protocol

HTTPS, SSL, SSH, SNMPV3, IPV6

LED Indicators

Power, Status, Ready, LAN 10/100MLink/Active

DC Input

8-15V

Power Consumption

5W

Running Environment

Temperature: 0°C ~ 70°C

Humidity: 10 ~ 85%

Other Configuration

Real time system clock synchronization

Languages

Real time system clock synchronization

Software Upgrade

Network upgrade, serial port upgrade

System Security

Provided filtering mechanism based on IP , and system operation, control and management of the user ID and password protection.

Safety Certificate

CE,FCC







Opitional Accessories

SN

Name



M.N

Function

Connection



1





Temp&Humid Sensor





RC77015

OLED Display



Detect data center indoor temperature and humidity parameters, every 20 M²need to install 1pc



RS422



RC77012

Digital Type



2



AirCon Infrared Component

RC77404

Remotely control air condition on-off,with auto reboot when AC recover

RS422







3



Smoke Sensor

RC77146

Detect indoor data center monitor status, every 20 M²-30M²need to install 1pc

DI

(terminals)





4





Infrared Sensor

RC77147

Detect data center intrusion, motion status

DI

(terminals)

5









Door contact

RC77424

Detect door or window on/off status

DI

(terminals)

6

Switching Value Transmitter

RC77754

Detect on-off status of air condition/ new fan

DI

(terminals)

7

Sound Light Sensor



RC77412

Give sound light alarm notification

DO

(terminals)





8





Water Leakage Sensor



RC77106

(Non-Locating)

Detect data center water leakage status, work with water leakage cable, cable (5/10/15/20/30meter)optional, support length custom

DI

(terminals))







Typical Application

Data Center Monitoring Management, UPS Monitoring, Server Room Monitoring, Environment Monitoring, Networking Monitoring, IT Solution
