Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Richcomm
  • Model Number: Sitepro
  • Usage 1: Power System Monitoring
  • Usage 2: Environment System Monitoring
  • Usage 3: Air Conditioning System Monitoring
  • Usage 4: Security System Monitoring
  • Feature: Highly Integration, One-stop Managment

Packaging & Delivery

Packaging Details 1 Set/carton
Delivery Time Shipped in 10 days after payment

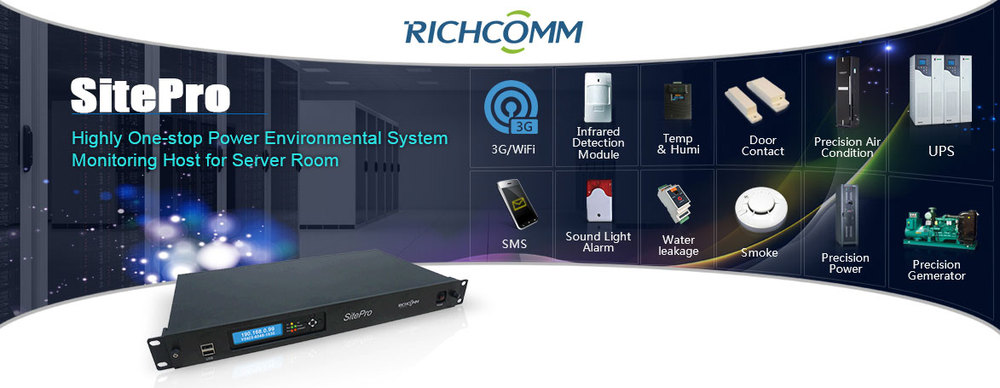

Overview

SitePro is an highly integrated monitoring solution for medium-small type data center(≤100²), it integrates 4 big infrastructure monitoring systems in one 19 inch host, including power system(UPS, power distribution, generator, earthing, etc), air condition system(precision air condition, general air condition), environment system(temperature, humidity, smoke, leakage, motion, etc), security system(door contact, access control, video, etc). SitePro provides a totally high level detect of data center infrastructure devices, when abnormal alarm happens, it will rapidly inform administrators to take efficient measures, 7*24 hours make guarantee of non-attend data center!







Hardware Feature

Dual power supply , with a high security level;

Dual Ethernet ports, LAN/WAN mutual isolation;

Dual USB ports(5V1A), support telephone alarm notification;

With LCD screen and removable front side panel;

Standard connected ports(RJ11,RJ45, DB9), fast for installation, easy for extension;

Built in 32G memory card, available to store 3-5 years history records;

With backup battery for 2-6 hours power failure;

With reserve extension ports;

Provide APP tablet monitoring.







Software Feature

Highly software integrated, one-stop management

Cloud technology, WEB access, build in guide function

B/S structure, no need to install the 3th party setups, make system security and reliable

Available to monitor and control multiple sets of UPS, air condition, power distribution, generator at a same time;

Completely environment system detect for temperature, humidity, smoke, leakage, motion gas, dust, etc

Support neutral earth voltage detect, early to find out grounding fault danger;

Strength compatibility, convenient for the post extension

3D virtual server room display ;

Support safety SMS function;

Support no disturb mode;

With self restart function when power recovery

Support remotely control of air condition, available to double machine switch work

Support remotely control of UPS shutdown, self testing, reboot

Provide multiform alarm notifications like email, SMS, telephone, sound light, etc







Ports Introduction

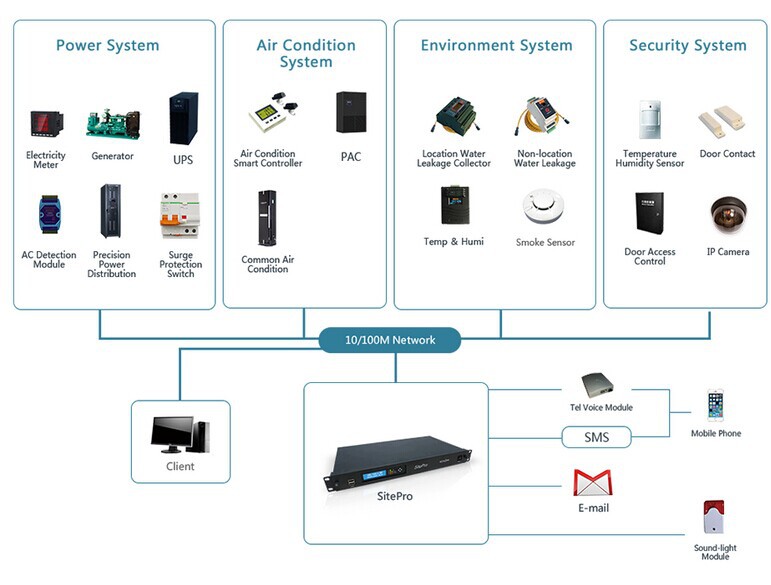

Network Diagram

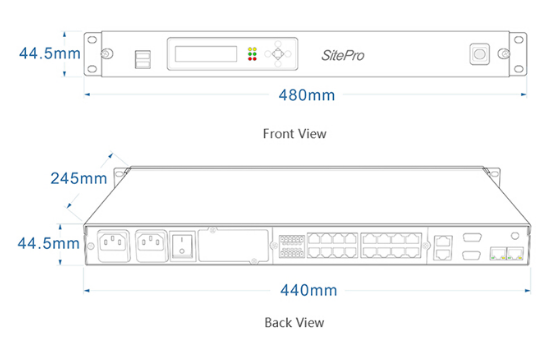

Dimension







1U 19 inch elegant design

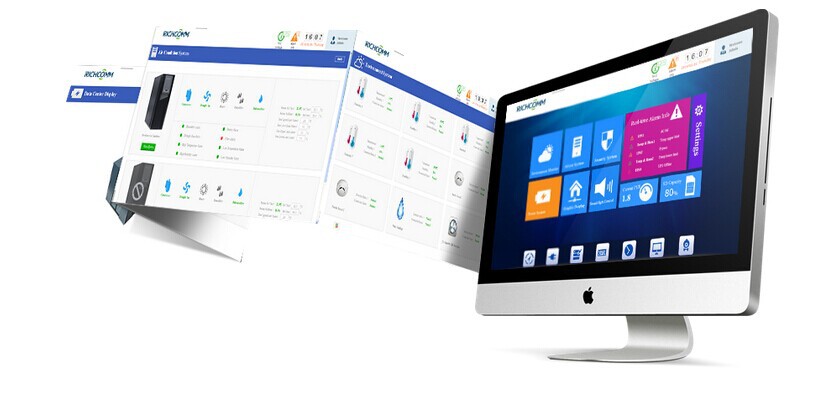

Monitoring Interface











 Technical Parameters

CPU

32-bit ARM RISC-based 400 MHz high-speed center processor

RAM

64M byte SDRAM

Flash ROM

1G byte Flash

Network

10/100Mbps High-speed Ethernet network self-adaptive

Device Port:

2 RS232 ports(DB9 type)



UPS



2 RS232/RS485 composite ports

UPS, precision A/C, power distribution



2 RS485 bus

Temp&Humid, general A/C



8 DIGIT INPUTS

(RJ11 type)



Smoke, leakage, door contact, motion, new fan detect, etc

4 DIGIT OUTPUTS (terminals)

Sound light

Browser support

Access to SNMP MIB directly through Internet Explorer, Netscape or compatible browser;
Support RFC1213, RFC1628 , PPC MIB

Network Protocol

TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, HTTPS, PPP,etc

Modbus-RTU, Modbus-

Encrypted Protocol

HTTPS, SSL, SSH, SNMPv3, IPV6

Running Environment

Temperature: 0°C ~ 70°C
Humidity: 10 ~ 85%

Input Power

110V-220V (60HZ/50HZ)

Other Configuration

Real time system clock synchronization

System Security

Provide filtering mechanism based on IP, and system operation, control and management of the user ID and password protection

System Upgrade

Network upgrade

Languages

Chinese/English, support OEM other languages

Safety Certificate

CE/ISO9001/IS014001







Accessories

SN

Name

M.N

Function

Connection

System Alarm

1

Telephone Alarm Module

RC77423

Provide telephone alarm notification

USB

2

Sound Light Alarm Sensor

RC77412

Provide sound light notification

Digit out

Environment System



1





Temp&Humid Sensor





RC77015

OLED Display



Detect data center indoor temperature and humidity parameters, every 20 M²need to install 1pc



RS485-A



RC77012

Digital Type





3



Smoke Sensor

RC77150

Detect indoor data center monitor status, every 20 M²-30M²need to install 1pc

DI

(RJ11)





4





Infrared Sensor

RC77149

Detect data center intrusion, motion status

DI

(RJ11)

5













Door contact

RC77435

.Detect door or window on/off status



DI

(RJ11)

6

Switching Value Transmitter

RC77755

Detect on-off status of air condition/ new fan

DI

(RJ11)

7.

Sound Light Sensor

RC77412

Give sound light alarm notification when alarm happens

DI

(RJ11)





7





Water Leakage Sensor



RC77151

(Non-Locating)

Detect data center water leakage status, work with water leakage cable, cable (5/10/15/20/30meter)optional, support length custom

DI

(RJ11)

8

Water Leakage Sensor

RC91245

(Locating)

Detect data center water leakage status with details location, work with water leakage cable, cable (5/10/15/20/30meter)optional, support length custom

RS485-B

Air Condition System



AirCon Infrared Component

RC77404

Remotely control air condition on-off,with auto reboot when AC recover

RS485-A

Power Distribution System



Three Phase Energy Meter

RC77207

Digital display, support to capture the power distribution cabinet of voltage, current, active power, reactive power, etc

RS485-A



Single Phase Energy Meter

RC77208

Digital display, support to capture the power distribution cabinet of voltage, current, active power, reactive power, etc

RS485-A



Mains Branch-switch Monitor

RC77305

Support to monitor 8 eletricity switch signal at a same time, output 485 singal to sitepro host, it most works with electricity meter.

RS485-B

APP Monitoring



APP Tablet

RC93006

Support APP monitoring

Network
