Smart Power Socket-Power Distribution Unit PDU Banking Solution ATM Monitoring Solution

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Richcomm
Model Number:
Smart Power Socket
Usage:
Remote Control Electrical Power On-Off
Feature:
with UPS monitoring and environmental system monitoring
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1 Set/Carton Box
Port
Guangzhou
Lead Time :
Within 30 days









Overview

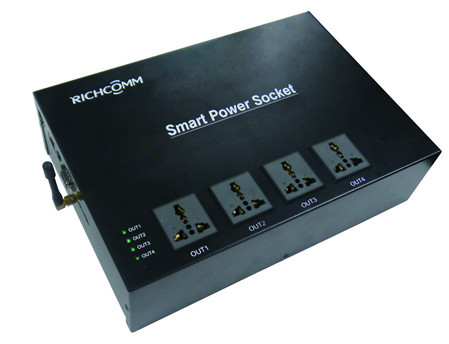

Smarter Power Socket is  a smart switch that similar with PDU but support more powerful function, it can remote control eletrical power on/off, remote reboot electrical roads, also support remote query UPS status, environment status, network status, output devices

eletricity consumption and control output distribution. Smart power socket is widely applied to unattended data center monitoring system such as ATM and mobile station etc.







Product Function

• Built-in WEB server to achieve HTTP access;

• Support monitor and detect each output electrical road of voltage, current, frequency,

electricity, active power and reactive power, etc;

• Support remote control the on/off/reboot of each output electrical road, each eletrical road  remote control the on/off/reboot of each output circuit branch, each circuit branch separate

to not be affected by each other;

• Task schedule;

• Built-in rechargeable battery;

• Built in GSM module, support SMS query and SMS alarm notification;

• Support history event and data record;

• SMS alarm;

• Support mutual backup for SMS and Ethernet;

• Custom the parameter value of each eletrical road;

• Support monitor and detect network status;

• Support monitor UPS, temperature and humidity, environmental parameters;

• Support network update;

• Work with IP Power 2012 for central monitoring management





Ports Introduction

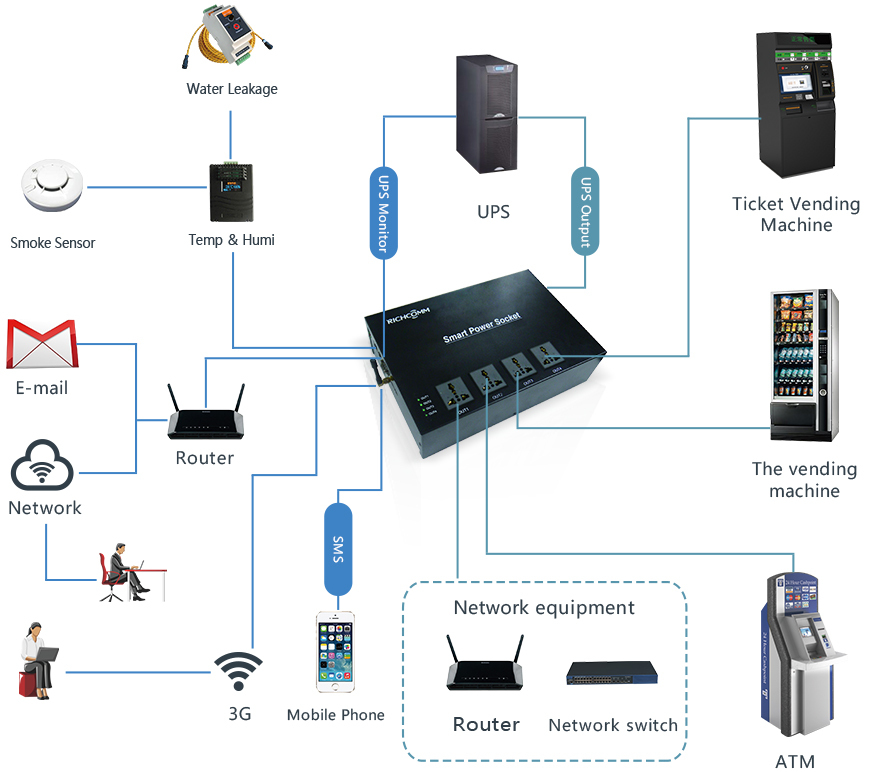

Network Diagram

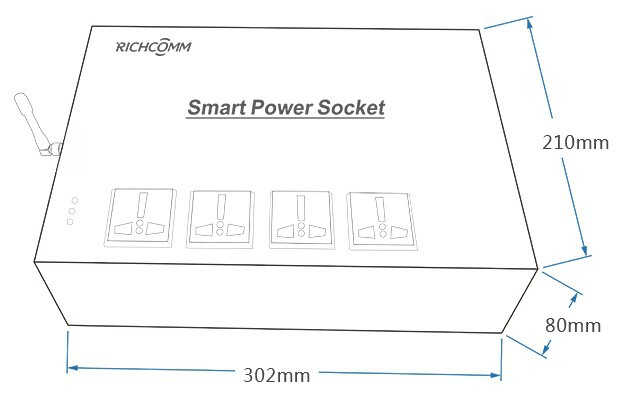

Demension



 socket size.jpg







Technical Parameters

CPU

32-bit ARM RISC-based 400 MHz high speed CPU

RAM

64M byte SDRAM

Flash ROM

1G byte Flash

Network Port

10/100Mbps Ethernet self-adaptive

Serial Port

1RS232 port

RS485 port

RS485 Port

Half-duplex

Input/Output Port

1 input/4 output

Input/Output Power(AC)

110-240V 50Hz/60Hz

Input Plug Wire

16A, 110-240VAC

Output Relay Port

4 channels of relay output control(utility),max: 16A

Utility Current Detection

4 channels of AC current detection input

Meter Acquisition

single phase AC mater acquisition

Bus Protocol

Modbus protocol

Network protocol

TCP/IP,UDP,SNMP,Telnet,SNTP,HTTP,SMTP,DHCP,DNS, TFTP,

ARP, ICMP, PPP, etc.

Led Indicator

Power, Status, Error

Runtime Environment

Temperature:0°C ~ 70°C

Humidity: 5 ~ 95%

Dimension

300.2*193.4*79.8 (L×W×H)(Unit:mm)

Safety Certification

ISO9001, ISO14001

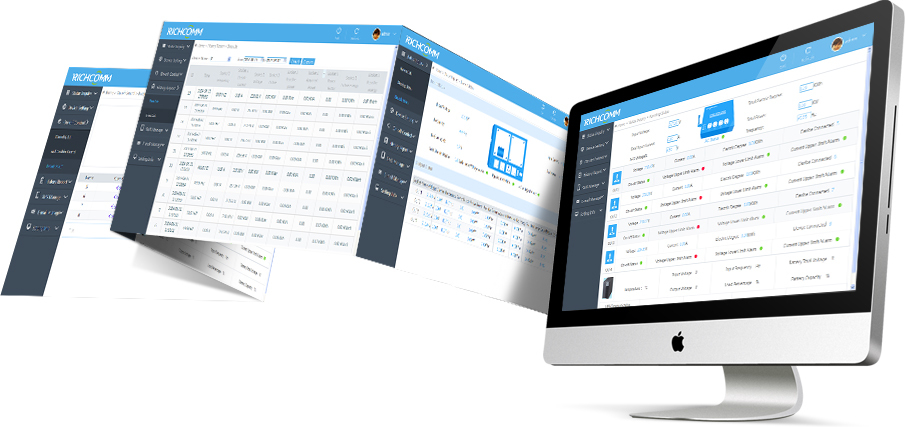

Monitoring Interface
