UPS Battery Wireless Battery Monitoring System

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Richcomm
Usage:
UPS
Voltage:
12v
Sealed Type:
Sealed
Maintenance Type:
Free
Size:
472*240*44mm
Weight:
4.5KG
Monitoring Type:
Online Real-time
Battery Pack Monitoring Range:
Voltage, Current, Capacity, Backup Time, Attenuation Rate, Temp, etc
Single Battery Monitoring Range:
Internal Resistance, Voltage, Temperature
Monitoring Amount:
240 Nodes/ Set
Battery Type Opitional:
2V/6V/12V
Input Power:
110-240V
Object:
UPS Battery, EPS Battery, Lead Acid Battery
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1 Set/Carton (Batt Manager Host)
1 Pc/Box (BDIT Module)
1 Pc/ Box (DC Sensor)
Network Adapter Embed in Batt Manager Host
Port
Guangzhou
Lead Time :
Within 30 Days




2.jpgOverview

Wireless battery monitoring system support UPS battery pack monitoring of  voltage, current, capacity, backup time, attenuation rate, temperature, etc, and support single battery monitoring of voltage, internal resistance, temperature etc.



This system can accurately report battery capacity attenuation ratio, predict discharge time , discharge backup time, regular charge/discharge promote etc, greatly help administrators understand the battery quality and catch UPS battery operating status, so will help to do efficient  maintenance and find out the hidden danger in early time. Also, Richcomm use the newest zigbee connection, which is more easier and convenient for installation and maitenance. The wireless battery monitoring system no doubt is your best chance for UPS battery monitoring and maintenance.







 Features

1.Smart Self-learning Function

1

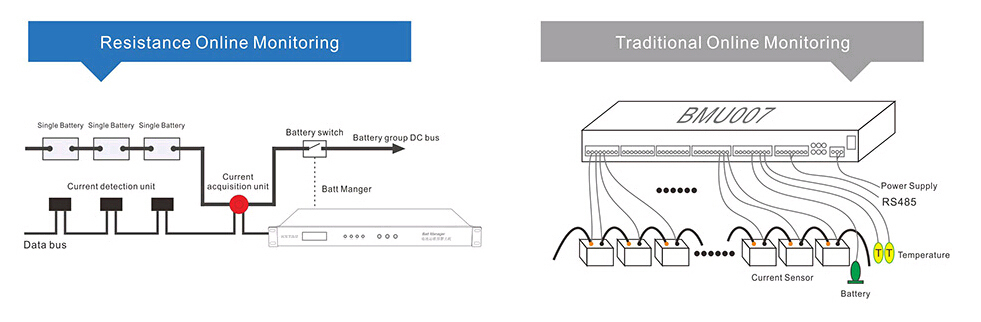

2.Excellent Online Internal Resistance Monitoring



3.Smart Self-learning Function Web Interface

  • Learn and record every battery discharging status, provide accurancy parameter predict for the next battery discharging.

4.Visual Web Management Function

  •  Through web browser to visit system, easily and convenient check the monitoring info and do function setting;
  • One-key finish management setting, more fast and easier for setting and use.

5.Various Report Function(check history events, export reports, check system logs and inspection records)

  • Anytime anywhere catch the battery operation status, can provide compare and anaysis for battery failtures

6.Various Alarm Self Definition Setting

  •  Can according to personal demands to choose suitable alarm objects,levels, ways, meanwhile, system provide alarm test to ensure valid alarm.



Functions

 Built-in WEB server to achieve HTTP access;

• Built in dual-frequency GSM/GPRS module(900/1800 MHZ);

• Realtime monitoring for battery operation to get early warning for failture, and support battery

failture detection and battery pack management;

• Advanced mathematical algorithm to provide accurate information for battery operation;

• Smart self-learning function;

• Modular design, the host can be separately operated as a platform of battery operation maintenance

and management;

• Battery detection intelligent terminal(BDIT) adopts unitbus mode, with its easy construction and

high reliability can monitor hundreds of batteries;

• Distributed design, BDIT unit-bus support the distance from host reach a length of 75M;

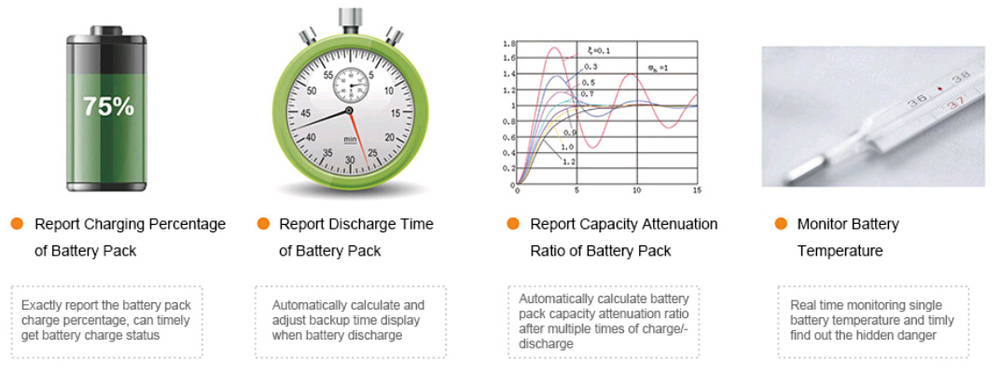

• Report the charging percentage of battery pack;

• Report the attenuation ratio of battery pack;

• Report the discharge backup time of battery pack;

• Support to use RS232 port to handle parameter configuration or program upgrade for the host,

also support to remote configuration or upgrade via network card. The RS232 port will auto off

when plug-in network card;

• Support to use wireless to query the running status of battery pack, at the same time support

remote query by network card;

• Support to connect 6 channels of BDIT( battery detection intelligent terminal) and every channel

can connect up to 40 BDIT, total up to 240;

• Support SMS, Email alarm;

• Support alarm battery battery detection;

• Each Batt Manager host support 240 nodes of single battery(2V/6V/12V)monitoring, for 1-6 packs;

• Support to detect voltage, current, temperature and resistance of each battery;

• Support SNMP management function.







 Appearance






Back View




Front View







 Ports Introduction

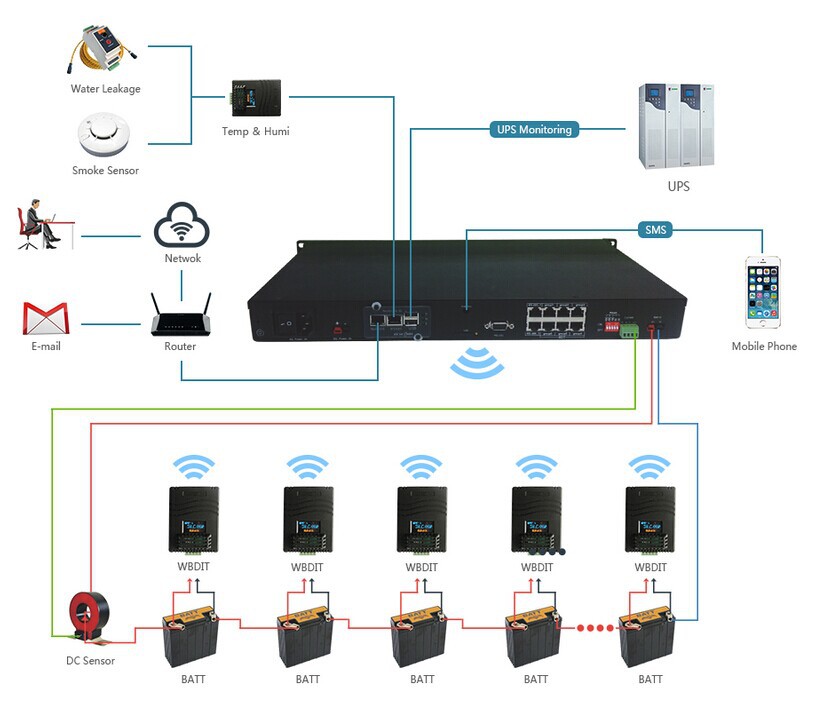

Network Diagram



batt manager top.jpg






Dimension




1U 19 inch elegant design



Interface



8.jpg <Home page>



9.jpg <Home page>



10.jpg <Network Setting>




<History Record>



Technical Parameters



Batt Manager(Host)



Network Port

10M/100M Ethernet network

Serial Port

Parameter configuration ,program update via RS232 or network card

Query battery operation status via RS485 or network card

Input Range

100~240VAC,50/60Hz, DC voltage: 120~370VDC

Switching Power Output(3 channel)

5VDC/4A; 15VDC/2A; -15VDC/ 0.5A

Maximum Output Current/Voltage

2A/15V

Maximum

40W

Current Sensor Power Supply

±15V/0.3A

Browser Supported

Support Internet Explorer,Netscape browser

LED Indicator

Run,COMM,BDIT,ERR

Temperature/Humidity

Temperature: 0°C ~ 70°C

Humidity: 10 ~ 80%

Monitoring Battery Pack Voltage

0—600V

Safety Certification

CE,FCC

Module Communication Port

Zigbee Transmission Port

Monitored Battery Amount

240 Nodes









WBDIT(Wireless Battery Detection Intelligent Terminal)






Communication Port

Zigbee

Transmission Rate (bit/s)

250K (2.4G Frequency Range )

Transmission Range(m)

10-75

Transmitted Power :TX Power (dBm)

4.5

Voltage Detection Range

2V,6V,12V Optional

Deviation

±0.1 %

Addressing Mode

IEEEE Stanard802.15.4/Wireless Standard Address Modes

Spread Spectrum

DSSS

Network Capacity

Max 240 pcs BDIT Modules/Set
