SNMP Card for UPS(NetmateLite SE)-Online Uninterruptible Power Supply UPS Monitoring

FOB Reference Price:Get Latest Price
US $45-60 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Richcomm
Model Number:
Netmate Lite SE
Phase:
Single Phase
Application:
Security / Monitoring / Alarm
Usage:
Single phase UPS Monitoring
DC Input:
9-15V
Installation Type:
Internal Long Card
UPS Connection:
Gold Finger
Firmware Upgrade:
Network/USB/Serial Port
Indicators:
S1, S2, S3
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1Piece/Box
Grid Packing
Port
Guangzhou
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(day) 30 To be negotiated








NetmateLite SE(Internal Long Card)



Overview

NetmateLite SE is belong to the Generation I Web-based UPS(uninterruptible power supply) SNMP cards that Richcomm company had launched in 2003, this internal long card support basic single-phase UPS monitoring with 500 history events, which of friendly user interface and simple operation, can fully satisfy user basic UPS monitoring demands.







Function

Support SNMP V1.1 version;

Support basic single phase UPS monitoring;

Provide user authorization management;

Built-in WEB server to achieve HTTP access;

With 3 indicators(S1,S2,S3) to check various working status;

Support 500 history events and data storage;

Clock function;

Support SNMP trap/e-mail alarm;

Support network/USB port/serial port;

l Work with IP Power SE/IP Power 2012 for central monitoring and unify management.







Advantage

Competitive price;

Friendly web interface, simple convenient operation & maintenance;

Flexibility;

Support standalone and network monitoring;

Support central monitoring and unify management (work with IP Power SE/IP Power 2012);

With clock function and 500 history events.

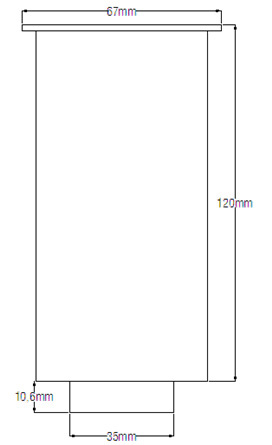

Dimention





1.jpg2







Network Diagram








Technical Parameters

CPU

Low power and high performance, high ARM7TDMI-S 72MHz CPU

RAM

96KB SDRAM

Flash

512KB Flash

Network Port

10/100Mbps high-speed ethernet self-adaptive

Serial Port

Gold Finger

Browser Support

Support Internet Explorer, Goole Chrome, Netscape or other compatible browser

SNMP MIB

Support MIB-II(RFC1213, RFC1315, RFC1316, RFC1628), PPCMIB

Network

TCP/IP,UDP,SNMP

Input Power(DC)

9-15V

LED Indicator

Power, Status, LAN 10/100M Link/Active

Power Consumption

≤0.84W

Working Environment

Temperature:0℃~70℃

Relative Humidity:≤95%

System Upgrade

Serial Port/USB Port/Network

System Security

Provide IP based filtering mechanism, system operation, user ID control & management and password protection.

Safety Certificate

CE,  FCC, ISO9001, ISO14001

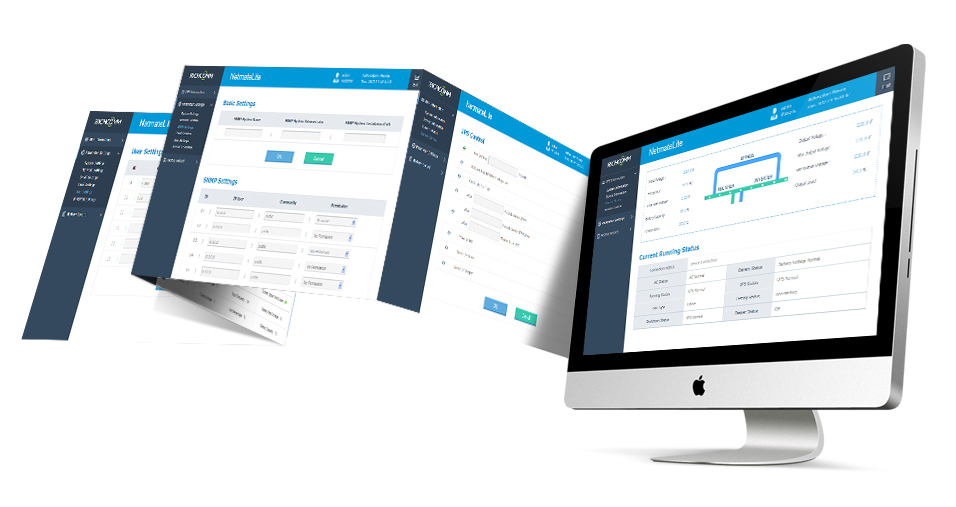

Monitoring Interface


Typical Application

Web-based UPS( uninterruptible power supply )monitoring
